Platform and services installation

Downloading the installation files

You can download the IIoT Platform installation images in two ways.

Installation steps

• Copy the required data package

  Copy the installation package to the server (administrator rights are required):

  • Copy the downloaded unicloud.tgz archive and the images folder (the standalone installation package with archived images) to the user’s home folder. The archive also contains the docker-compose.yml and .env configuration files (.env is hidden, so enable showing hidden files).
  • images

    • vadtel-nginx-latest.tar.gz
    • vadtel-app-latest.tar.gz
    • anytelemetry-latest.tar.gz
    • pgbouncer-latest.tar.gz
    • vadteljsondaemon-latest.tar.gz
    • logrotate-latest.tar.gz
    • postgres-15.1-alpine.tar.gz
    • redis-6.0.16-alpine.tar.gz
    • vector-latest.tar.gz

  • Copy the configuration files to /opt/vadtelnewweb/.

  • Set the system logins and passwords in the .env file:

  .env

  #key
  SECRET_KEY_BASE=0356080kcn0ejgk4lwekrf

  #DB PGSQL login
  PG_APP_USER=ppppp

  #DB PGSQL password
  PG_APP_PASSWORD= ppppp

  #WEB interface login
  VADTEL_SUPER_ADMIN_EMAIL=NEED_USERNAME

  #WEB interface password
  VADTEL_SUPER_ADMIN_PASSWORD=NEED_PASSWORD

  #DB PGSQL unicloud login
  VADTEL_UNICLOUD_TEST_USERNAME=NEED_USERNAME

  #DB PGSQL unicloud password
  VADTEL_UNICLOUD_TEST_PASSWORD=NEED_PASSWORD

  code

• Install Docker and Docker Compose

  On a CentOS-based distribution

  Install Docker and Docker Compose:

  bash

  sudo dnf install docker-ce docker-compose

  Start Docker and enable it at boot:

  bash

  sudo systemctl enable --now docker && systemctl start docker

  On a Debian-based distribution

  Install Docker and Docker Compose:

  bash

  sudo apt update
  sudo apt install docker docker-compose

• Install the system

  The remaining steps are the same on every operating system. Add the user that will run the application to the docker group:

  bash

  sudo usermod -aG docker ${USER}

  Unpack the unicloud.tgz archive in the user’s home folder:

  bash

  tar -xf unicloud.tgz

  • unicloud

    • run

      • db-unicloud
    • remote_install.sh
    • init-db

      • create_tables.sql
    • script_conf.sh
    • docker-compose.yml
    • logs

      • crontab
      • vadteljsondaemon
      • anytelemetry
    • backups
    • data

      • db-unicloud
    • local-images

      • pgbouncer.tar.gz
      • postgres.tar.gz
      • vadteljsondaemon.tar.gz
      • anytelemetry.tar.gz
      • logrotate.tar.gz
    • unicloud.service

  Open the unpacked unicloud folder in the user’s home folder and run the installation script:

  bash

  sudo ./remote_install.sh

  After the package installs, open /var/lib/unicloud with administrator privileges and change the owner and group of the .env file to the current user.

  The script generates the database login and password in /var/lib/unicloud/.env. Copy these values into /opt/vadtelnewweb/.env:

  bash

  VADTEL_UNICLOUD_TEST_USERNAME=NEED_USERNAME

  VADTEL_UNICLOUD_TEST_PASSWORD=NEED_PASSWORD

• Extract and load the images

  Unzip the image files in the previously copied images folder:

  bash

  gunzip vadtel-nginx-latest.tar.gz
  gunzip vadtel-app-latest.tar.gz
  gunzip anytelemetry-latest.tar.gz
  gunzip pgbouncer-latest.tar.gz
  gunzip vadteljsondaemon-latest.tar.gz
  gunzip logrotate-latest.tar.gz
  gunzip postgres-15.1-alpine.tar.gz
  gunzip redis-6.0.16-alpine.tar.gz
  gunzip vector-latest.tar.gz

  Load the images into Docker:

  bash

  docker load -i vadtel-nginx-latest.tar
  docker load -i vadtel-app-latest.tar
  docker load -i anytelemetry-latest.tar
  docker load -i pgbouncer-latest.tar
  docker load -i vadteljsondaemon-latest.tar
  docker load -i logrotate-latest.tar
  docker load -i postgres-15.1-alpine.tar
  docker load -i redis-6.0.16-alpine.tar
  docker load -i vector-latest.tar.gz

  Check that the images are available:

  bash

  docker images

  All nine images you loaded should appear in the list.

  If the images loaded without errors, run the following command from the /var/lib/unicloud folder:

  bash

  docker-compose up -d

  Create a directory for the vadtelnewweb application under /opt:

  bash

  sudo mkdir /opt/vadtelnewweb
  cd /opt/vadtelnewweb

  Then copy the docker-compose.yml and .env files (if you didn’t copy them earlier for a new installation) to /opt/vadtelnewweb.

  On the first run, create the database:

  bash

  docker-compose run app bundle exec rails db:create

  Now start the application:

  bash

  docker-compose up -d

  Troubleshooting

  If the application reports the following error after startup:

  bash

  network unicloud_unicloud-net declared as external, but could not be found

  the external network was not created during installation. Perform the initial installation from the unicloud.tar.tgz archive as described in Install the system, then start the application again:

  bash

  docker-compose up -d

  Check the running containers:

  bash

  docker ps

  All containers should be listed with status Up.

• Check the system

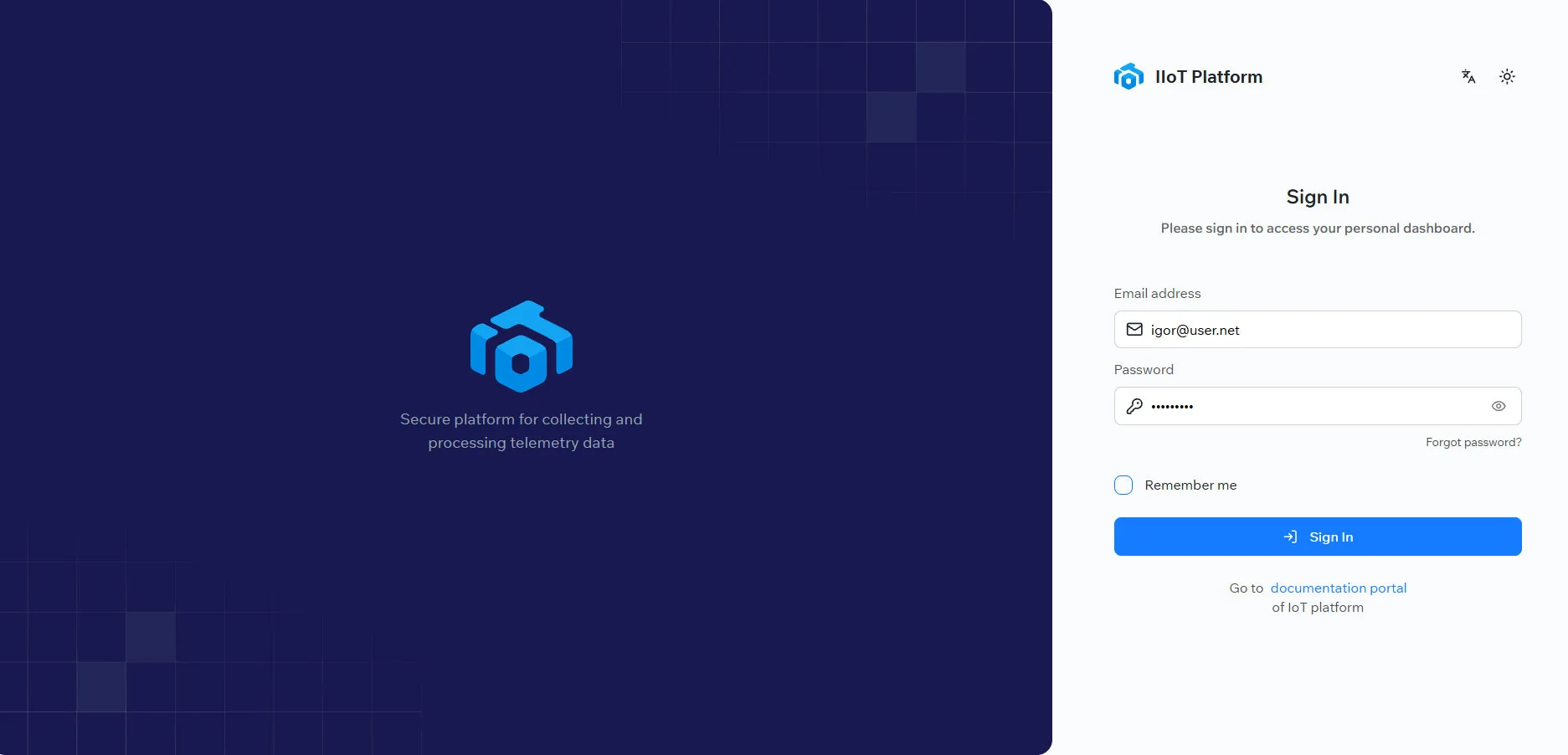

  After the application starts, open the IP address of the server it runs on in your browser to confirm that the system is up:

  bash

  http://127.0.0.1/auth/users/sign_in



  The sign-in email and password are set in /opt/vadtelnewweb/.env:

  .env

  VADTEL_SUPER_ADMIN_EMAIL= (login)
  VADTEL_SUPER_ADMIN_PASSWORD= (password)

Next steps

With the platform installed and running, set it up to update cleanly and to restart automatically with the server.
